AS-1 (ANGULAR CUTTING)
AS 1 angular cutting machine for simple cuts from small foam pieces

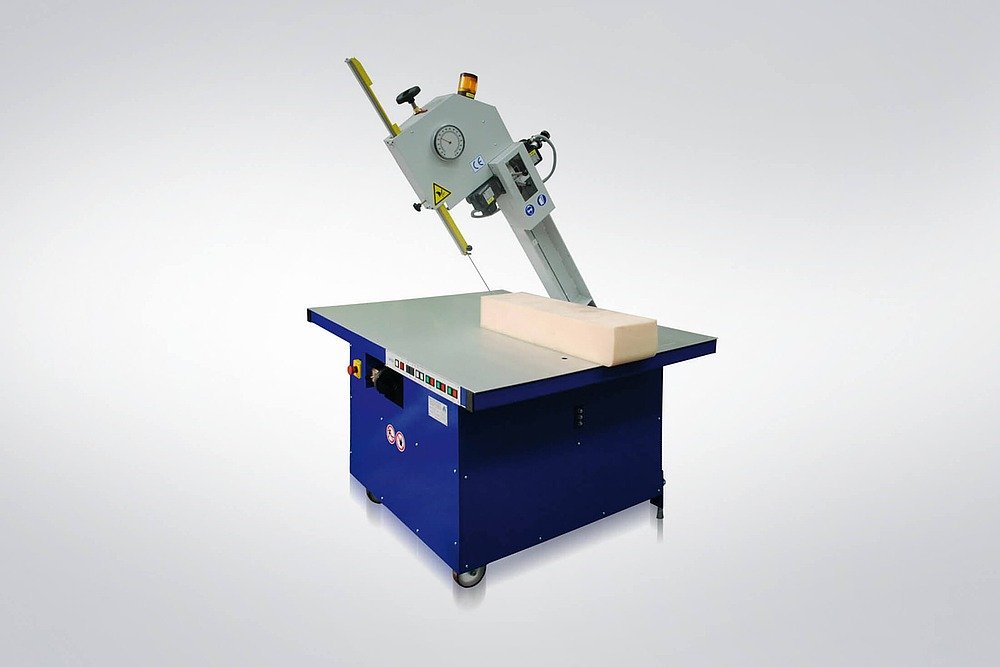

AS-1 angular cutting machine

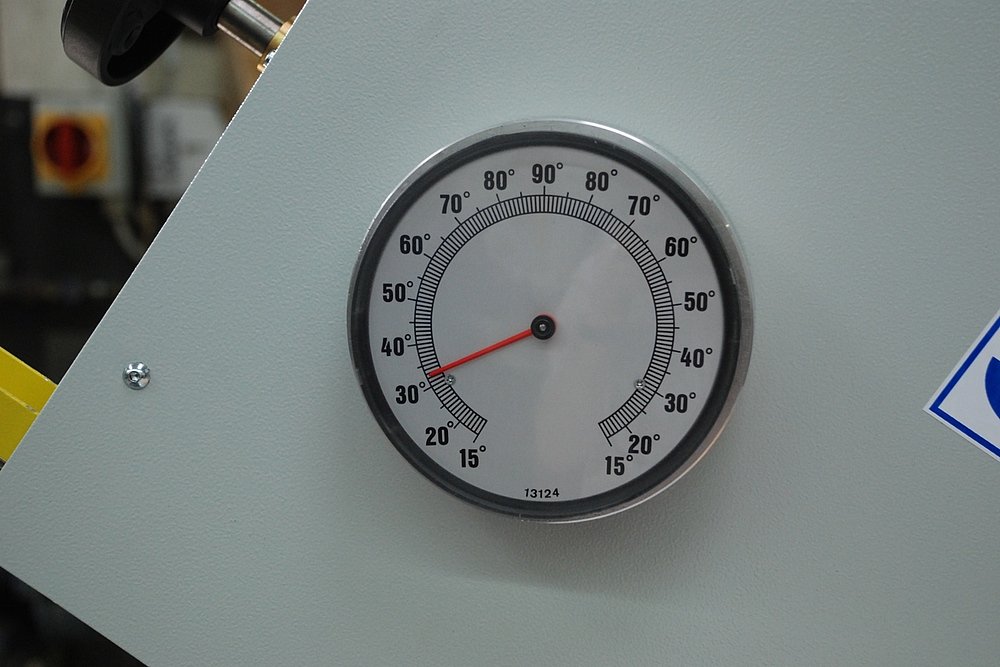

The vertical cutting unit can be swivelled to 15° in both directions. By this, it is possible to cut a multitude of different patterns.
- It is possible to work by the template and to bevel at the same time

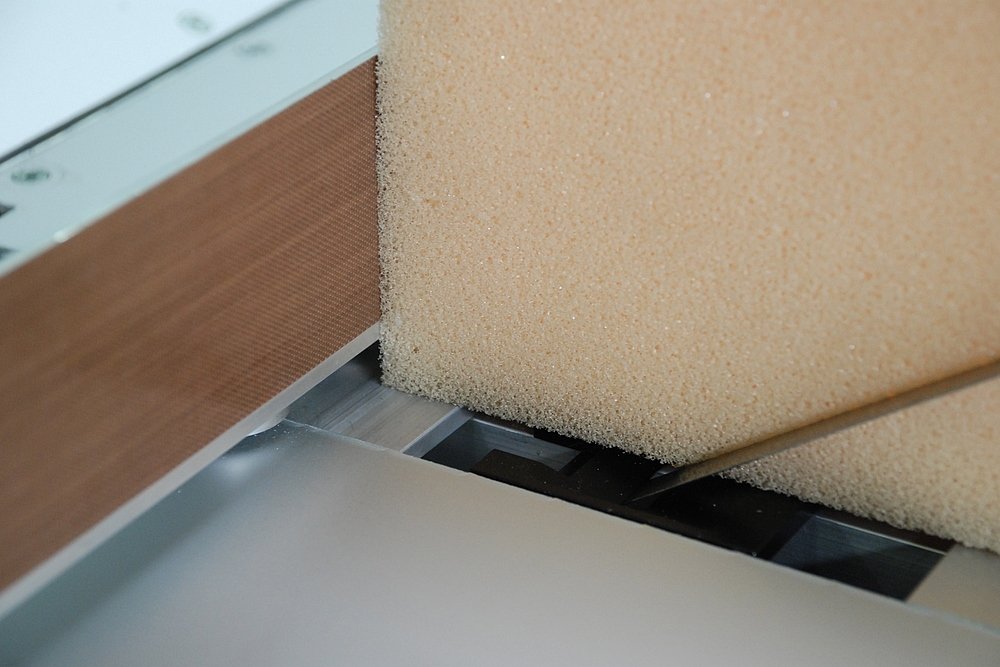

- With the twisted band knife it is possible to cut in both directions
- Max. block height of 400 mm, optional 650 mm, in vertical basic position of the cutting unit

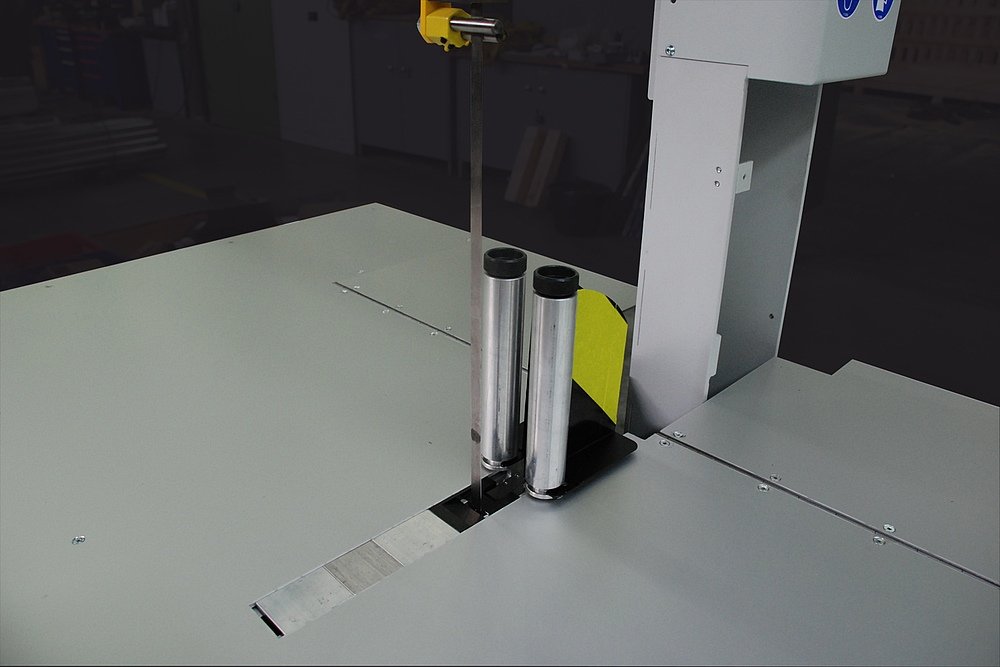

- Two manually adjustable rollers on the working table facilitate the manual templating
- Long knife lifetime as rubberized knife wheels with a diameter of 300 mm are integrated in a two-wheel cutting unit which create a sufficient bending radius

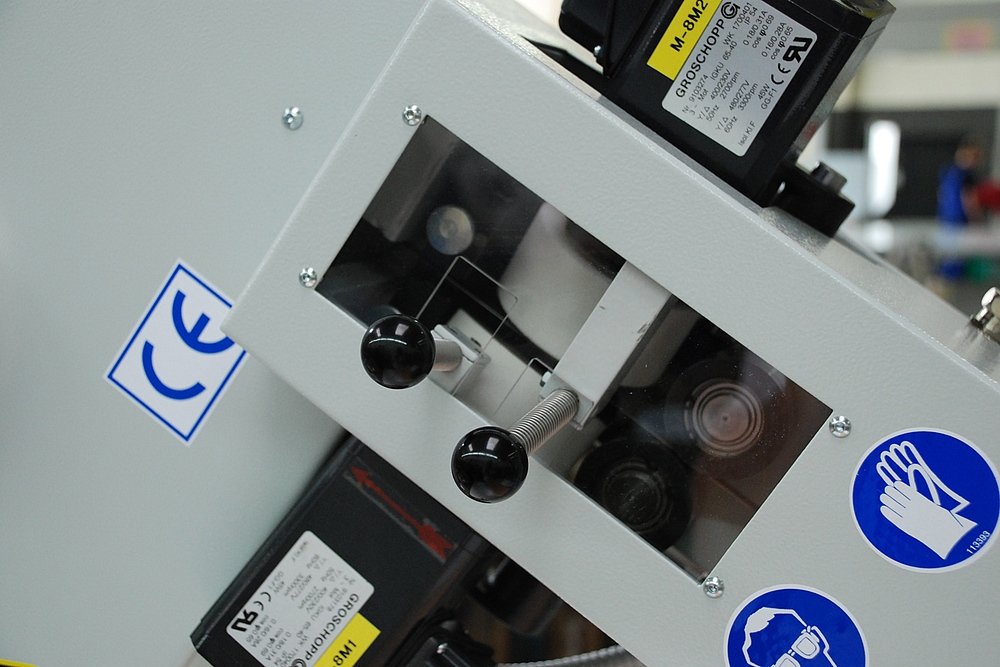

- A motor-driven grinding unit sharpens the circulating knife and guarantees a high surface finish
- The machine is placed on rollers and by this it can be easily relocated inside of the factory.
Key Facts
Application
packaging, furniture, upholstery and automotive industry, medical-technical applicationsAngular cutting
Material
PUR soft foam, HR foam, visco foam, latex, rebond foam, Basotect®, PE
Cutting Tool
Endless circulating precision-ground band knife 10 x 0.45 mm
Technical Data
Standard
- Guiding rollers, adjustable by hand wheel
- Manually adjustable knife guide and knife protection, respectively
- Motor-driven grinding unit
- Two-wheel cutting unit with knife
Options
- Cutting speed 3-25 m/min
- Motor-driven lateral transport belt
- Straight side stop, adjustable by hand wheel
Foundation Plan

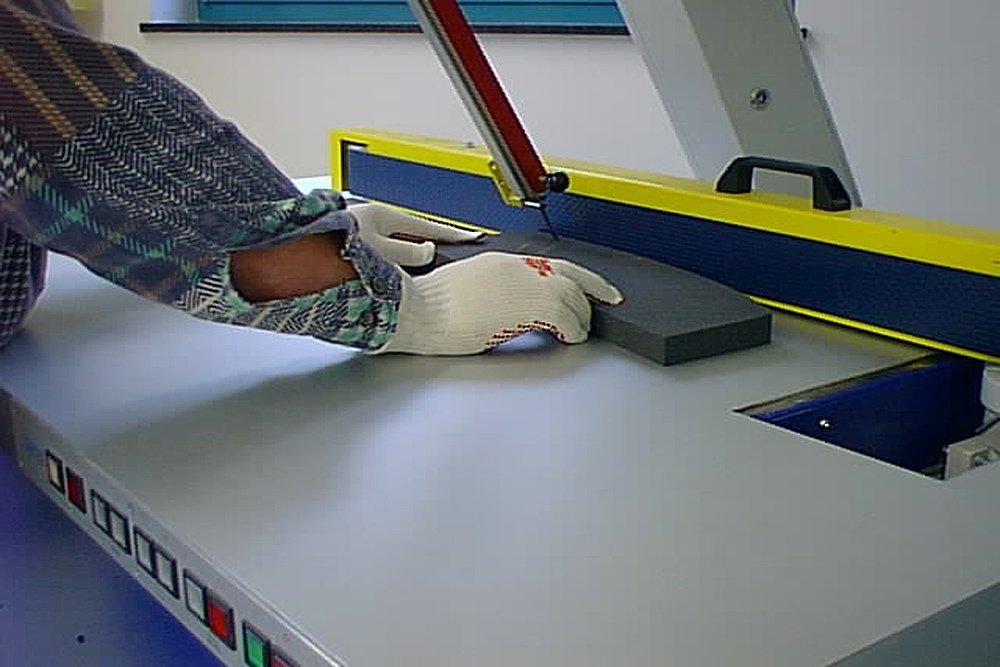

Driven transport conveyor
- Driven transport conveyor facilitates the cutting of recurring parts
- Positioned downstream of the knife
Straight side stop
- A straight side stop can be installed instead of the manually adjustable rollers
- Increase of cutting accuracy
