BZM-A

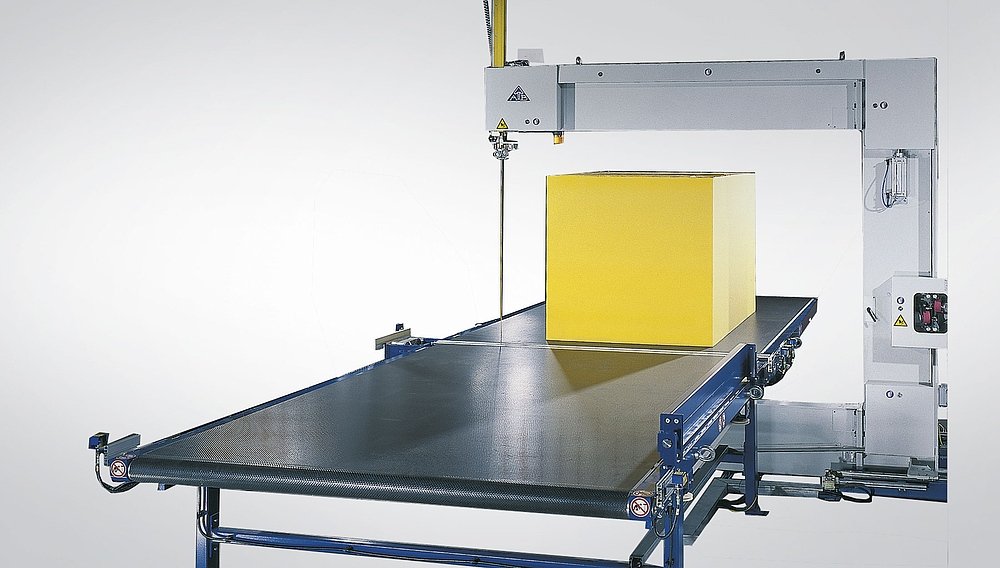

All-automatic vertical cutting machine for the trimming, cutting or splitting of short and long blocks
BZM-A block trimming machine
Due to the lateral positioning of the cutting unit, a maximum cutting speed of 40 m/min can be achieved (BZM-I 20 m/min) and the cutting cycle times can be reduced once more.
- The turning of the knife by 90° by a pneumatic knife turning device enables the cutting-off and trimming of a block as well as to cut it to size
- Four different working modes for the trimming of short blocks1. Only at the front and at the rear2. All four sides3. All four sides and centre cut4. Sectioning of the block into further single blocks and individual rectangular cuts
- Cutting-off function for long blocks of the BZM-A:- Cutting-off a short block to any length- Separating the short block from the long block- Cutting/trimming the short block on all sides, prepartion for subsequent processing
- Efficient utilization of material with a minimum of waste

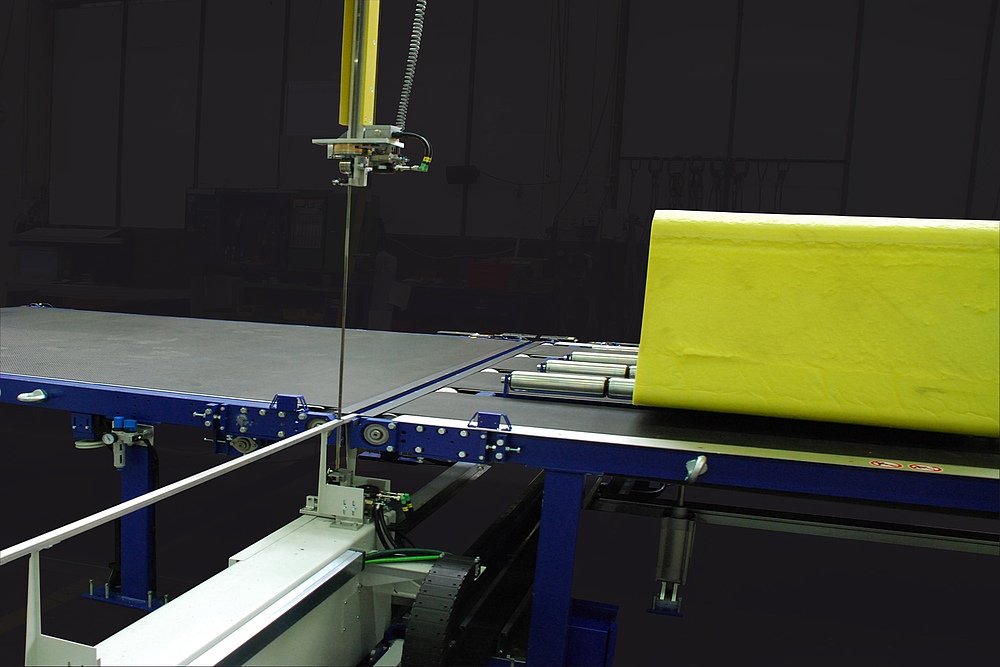

- As as standard, the BZM-A is equipped with an on-board knife gap cover so that it is also possible to cut sheet stacks
- Two infinitely variable sychronized transport conveyors can separately move the previously cut partial blocks and remove them in longitudinal direction

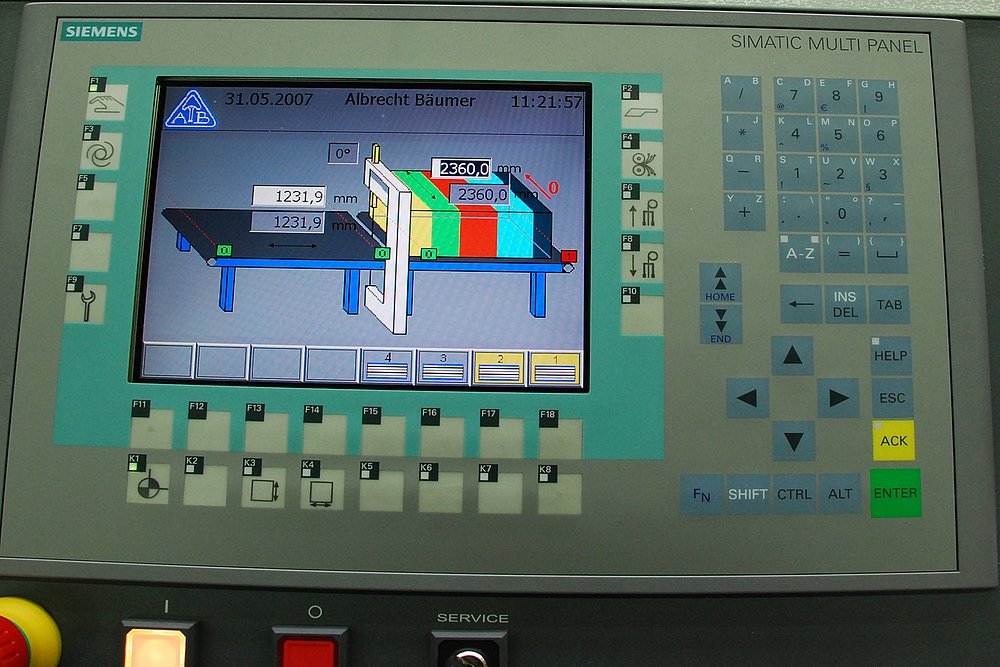

- Due to the all-automatic mode of operation, the machine can be used either as a stand-alone version or incorporated into cutting lines.
Key Facts
Application
Upholstery, mattress, furniture, packaging and automotive industry as well as technical articlesVertical cutting
Material
Block and sheet ware made from PUR soft foam, PUR rebond foam, visco-elastic foam, latex
Cutting Tool
Endless circulating ground or toothed knife from 8-15 x 0.45 mm
Technical Data
| Standard | Options | |
| Block Width | 2 200 mm | 1 250 mm, 2 500 mm |
| Block Height | 1 300 mm | 650 mm, 1 500 mm |
| Block Length | 2 400 mm | 2 200 mm, 3 050 mm, 3 300 mm, 4 200 mm |
Standard
- B-Con
- Transport conveyor system
Options
- Alignment station upstream of the machine
- Cooling unit
- Grinding dust extraction unit
- Motor-driven grinding unit
- Motor-driven knife guide, movable to a height of up to 580 mm above the table
- Optical knife grinding control
- Waste determination
- Weighing device in the machine, positioned downstream of the cutting unit in cutting direction
Foundation Plan
Waste determination
- Measuring device which calculates the proportional waste rate by means of the PLC control after the block has been trimmed
- The proportional waste occuring after the trimming of the block is indicated through a light barrier control

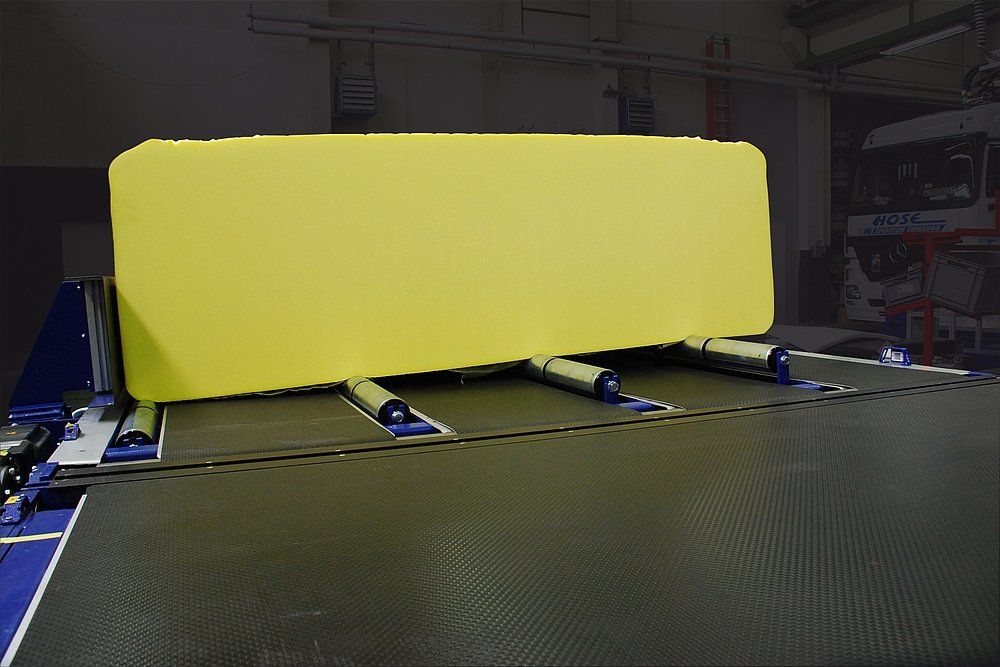

Alignment station
- Alignment station for a precise positioning of the block
- Recommended for the automatic feeding of the vertical cutting machine
Loading and unloading conveyors
- Equipment with loading and unloading conveyors with various lengths for the converting of short blocks in automatic mode
- Positioning of the conveyors upstream or downstream of the machine
- Prevention of machine down times
Short block weighing device
- Electromechanic short block weighing device
- The short block weighing device is incorporated into the existing transport conveyor downstream of the cutting unit of the BZM-A
- For the determination of the short block weight
Knife guide
- The upper knife guide serves for knife protection in the unused cutting area and improves the knife guide
- Reduction of the non-guided knife length for a better fixation of the knife particulary when cutting smaller blocks or sheets
- Optimizes the cutting quality and allows the utilisation of the maximum cutting speed
Grinding unit for ground knives
- Optional equipment of the machine with ground knife in connection with a motor-driven grinding unit
- Optical knife grinding control for a better surveillance of the knife grinding process and for achieving of an optimal cutting appearance

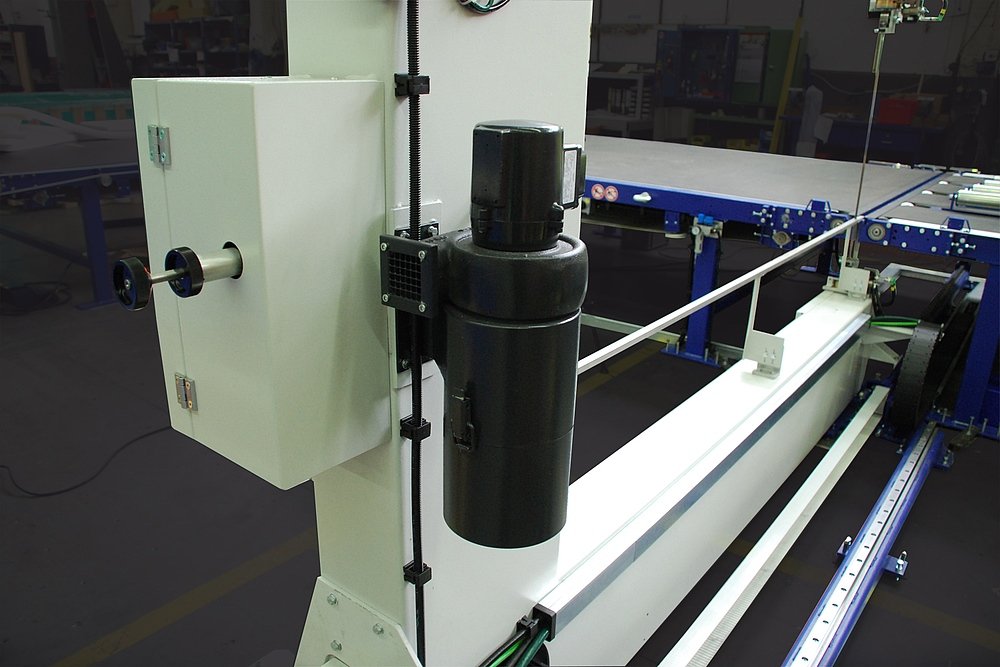

- The machine can be equipped with a grinding dust extraction unit for the extraction of the grinding dust
