IS-L

Manual vertical cutting machine for cutting or trimming block material or sheets and for stenciling

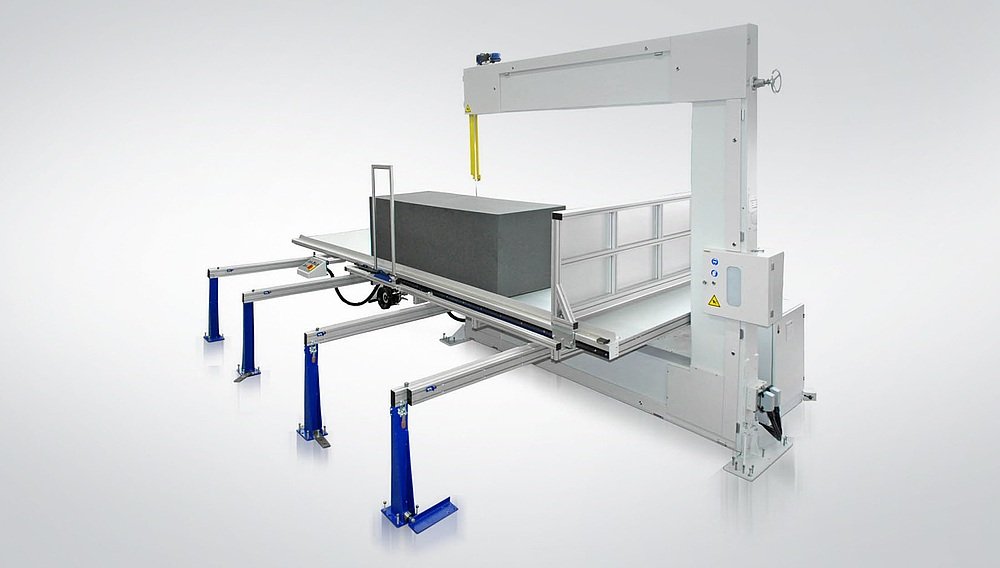

IS-L vertical cutting machine

The table is manually moved, the lateral stop is adjusted by means of a hand wheel.

  • Different table models
  • Direct detection and display of side stop position by means of digital cursors (Option)
  • Due to the option of locking the movable table, it is also possible to manually work by the templet on the machine
  • For precise parallel cuts the material is guided on the sliding table by means of a side guide.
  • A ratchet for adjusting the side stop guarantees an exact infeed with recurring cutting widths
  • Optionally available with motor-driven grinder and grinding dust extractor unit
  • Special design with set knife for the cutting of insulating material (e.g. mineral wool, PUR rigid foam or polystyrene (EPS))



Key Facts

Application

Mattresses, furniture packaging and automotive industry, consumer goods/houshold goods, construction industry

Material

Block and sheet ware from PUR soft foam, PE foam, non-woven material, foam rubber, latex, EPDM foam and Basotect®, rock wool and glass wool as well as PUR rigid foam, laminated sheet ware, etc.

Cutting Tool

Precision-ground smooth circumferential knife 6 – 20 mm in width, also available with toothed knife or set knife

Technical Data

  Standard Options
Block Width 1 250 mm 1 600 mm, 2 200 mm
Block Height 1 300 mm 650 mm, 1 500 mm
Block Length 2 200 mm 2 500 mm, 3 100 mm

Standard

  • Motor-driven knife protection unit
  • Side stop
  • Pneumatic knife tensioning support

Options

  • Adjustable knife speed
  • Angle-adjustable side stop
  • Digital position indicator
  • Grinding dust extraction unit
  • Grinding unit
  • Increase of side stop height
  • Optical knife grinding control
  • Ratchet for side stop adjustment
  • Version for rigid foam

Foundation Plan

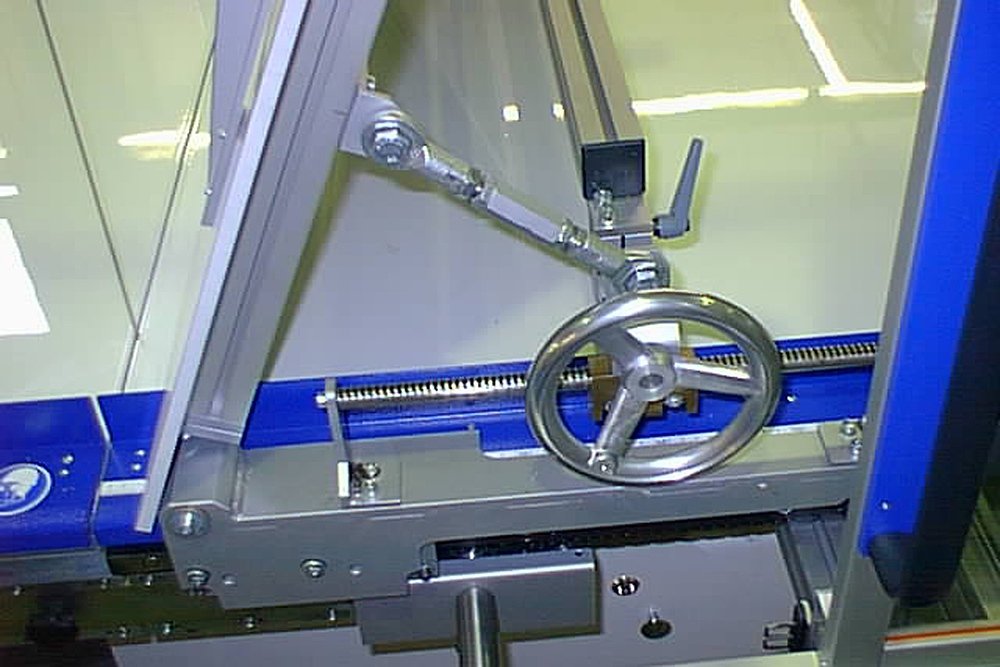

Angle-adjustable-side-stop

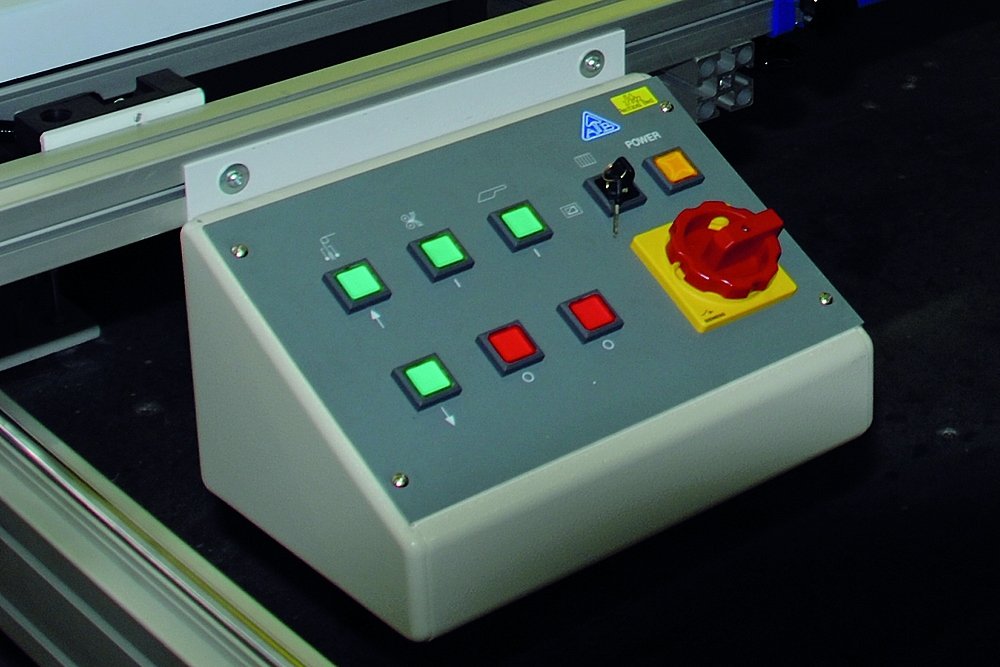

Control
csm_20160728_JBO_MS__IS-L_FU-Plan_79b9afd045
csm_IS-L_Gesamtansicht_79b0e91b74
Digital-position-indicator-of-the-side-stop

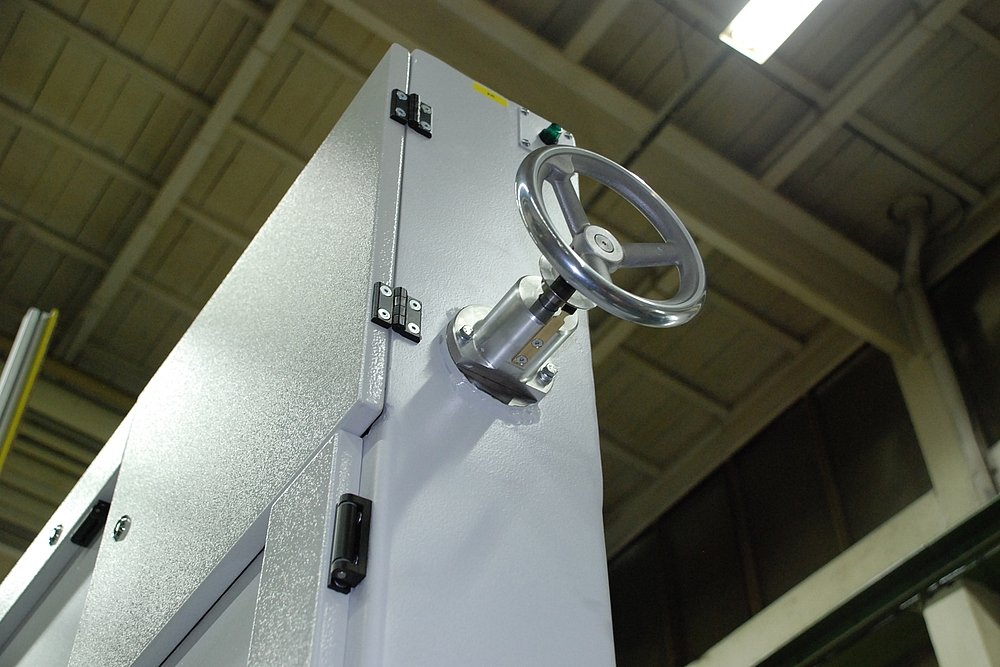

Hand-wheel-for-tensioning-the-knife

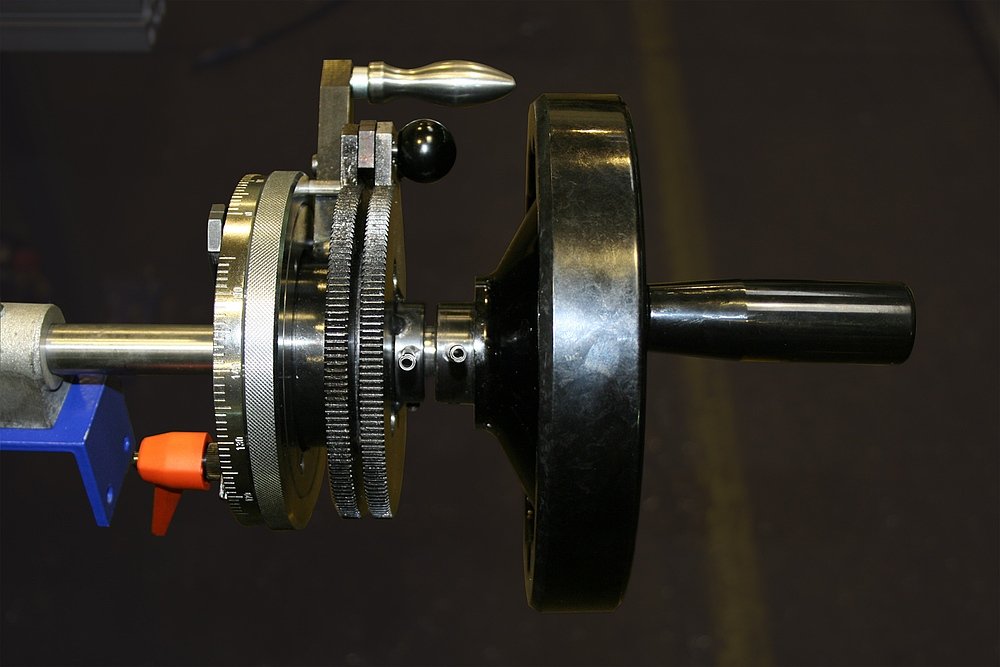

Hand-wheel-in-connection-with-ratchet-optional

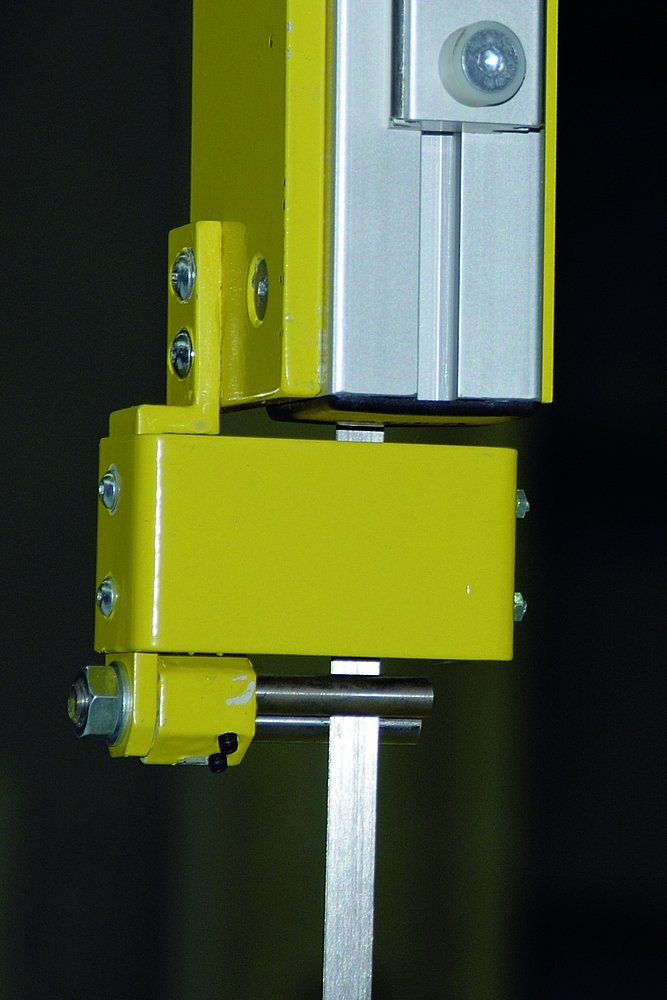

Knife-protection-unit-adjustable

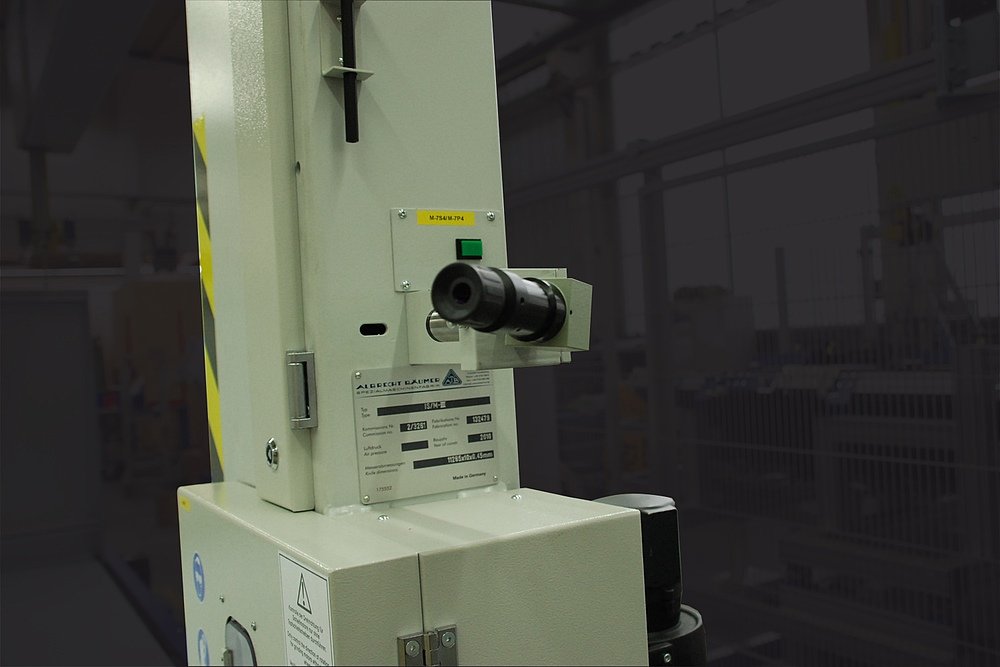

Motor-driven-grinding-unit

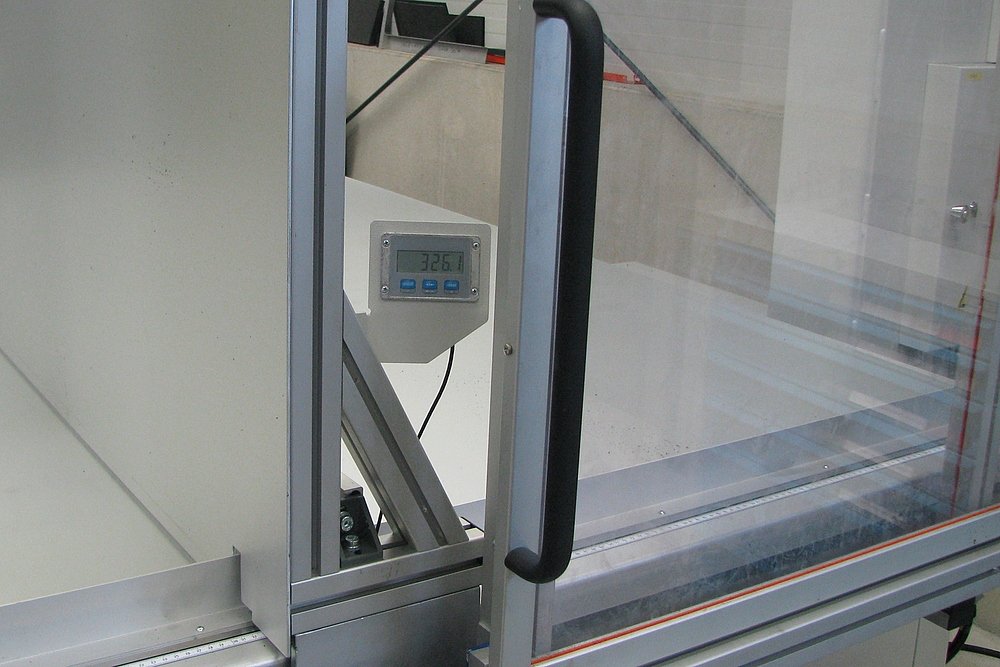

Dig. pos. indicating device

  • Electronic display for the exact detection and indication of the position of the stop

Set knife

  • Version with set knife
  • For the cutting of insulating materials, rock wool or rigid foam in conjunction with an optional dust extraction unit
  • Special design with set knife

Ratchet

  • Ratchet for the exact and fast infeed of the side stop
  • Labor-saving when working with recurring cutting widths

Grinding unit

  • Grinding unit with two motor-driven grinding discs
  • For extracting the grinding dust arising during the grinding process
  • Essential when utilizing a smooth knife

Baeumer – Machine
