BSL-D

Horizontal cutting machine with turntable (carousel) for the cutting and splitting of sheets of many different sizes in great quantities

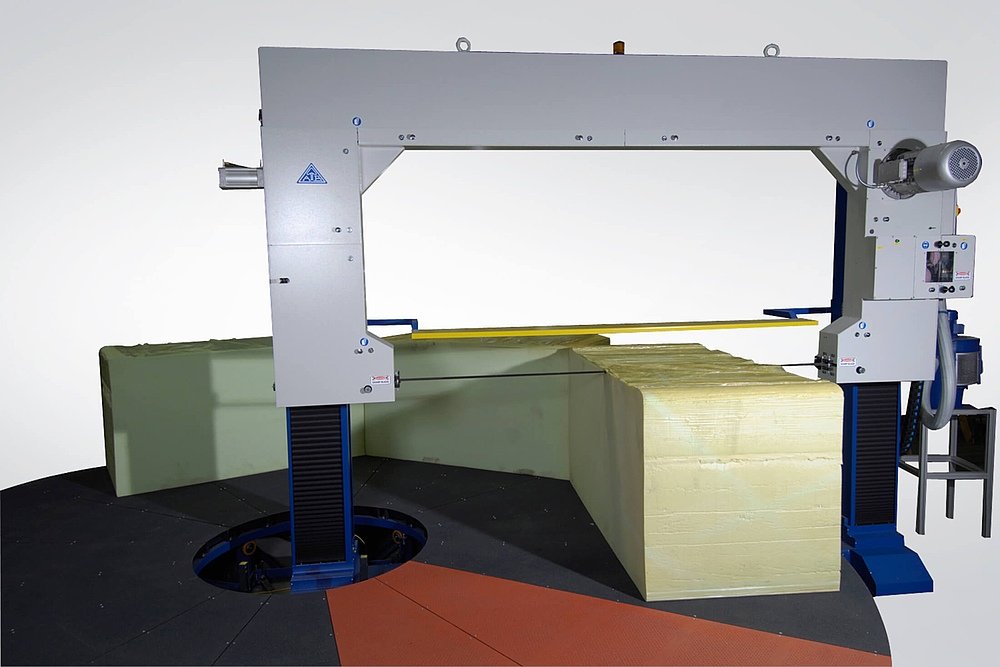

BSL-D horizontal cutting machine

Converting of leightweight up to medium densities

  • Permanently high cutting precion throughout the knife lifetime thanks to the employment of a band knife of 30 mm width which is ground by an integrated grinding unit.
  • Creation of optimal cutting angles and cutting of precise sheet thicknesses by an all-automatic angle adjustment option of the cutting unit
  • Optimal fixation of the piece to be cut by means of the standard equipment of the table with vacuum units
  • Long knife lifetime and low set-up costs as the knife is relieved of the strain as it does not need to be turned due to the swivelling cutting unit
  • Various table diameters available for the optimal utilization of the machine
  • All-automatic version of the BSL-D, depending on the table diameter, with corresponding loading and unloading conveyors upstream and downstream of the machine



Key Facts

Application

Furniture industry, production of mattrasses, automotive industry, packaging industry, technical articlesHorizontal cutting

Material

PUR foam and PUR rebond foam, visco foams, Basotect®, latex, reticulated foams

Cutting Tool

The machine is equipped with an endless bandknife of 30 mm width which runs over 4 wheels in the cutting unit

Technical Data

Standard

  • Grinding dust extraction unit
  • Grinding unit
  • B-Con
  • Motor-driven angle adjustment of the cutting unit from -1 to +6 degrees at the push of a button (manual or automatic)
  • Pedal switch for loading and unloading
  • Vacuum unit

Options

  • Air cushion system
  • Cooling unit
  • Loading and unloading conveyors
  • Silicone spraying unit for improving the cutting performance
  • Turntable with 3 belts for an easy loading and unloading (only with turntable 7 200 mm)

Foundation Plan

BSL-D-with-betts
BSL-D
BSL-D_
BSL-D__

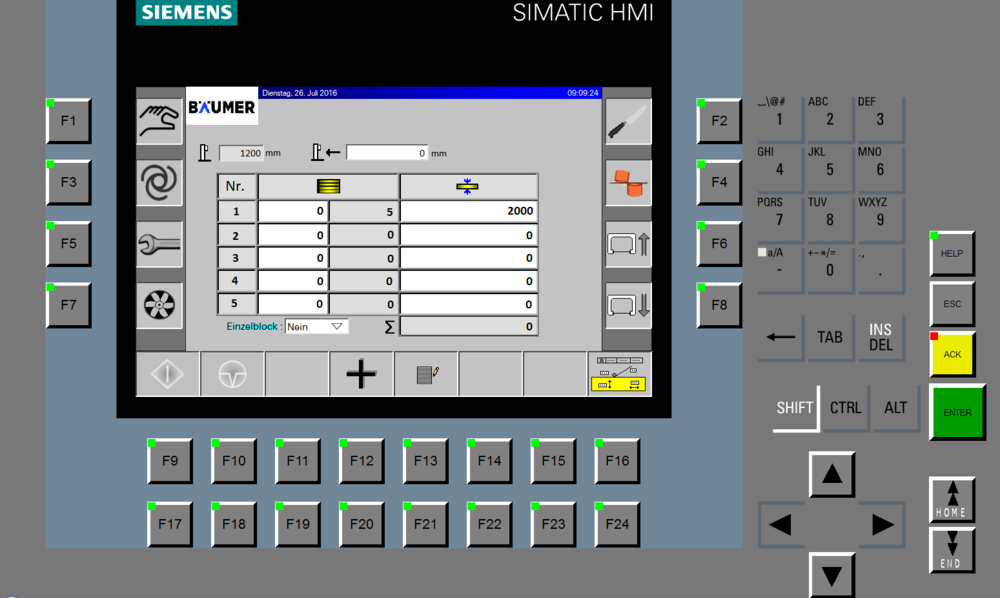

Control-automatic

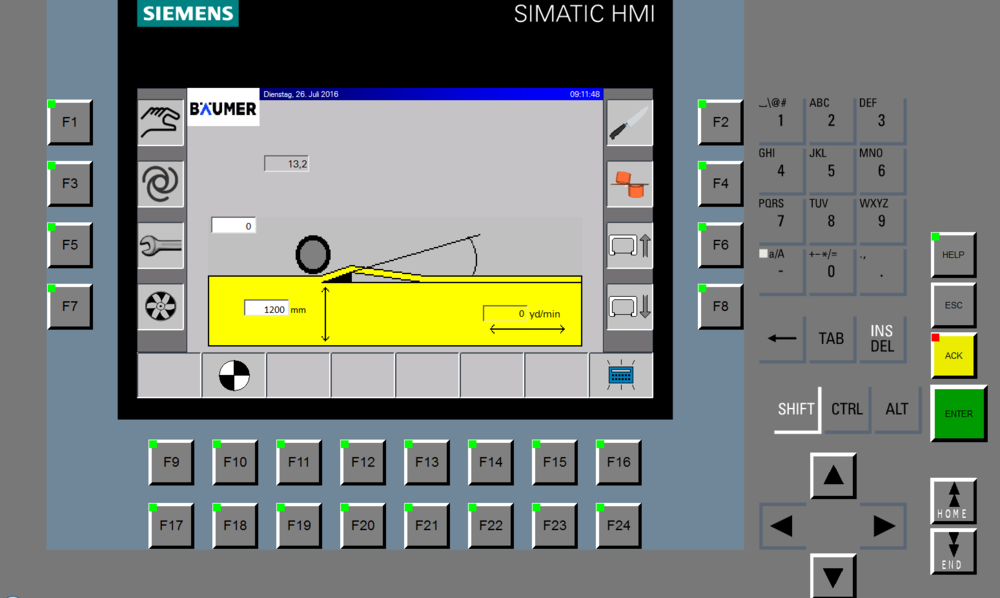

Control-manual
csm_BSL-D_Gesamtansicht_666e120db2

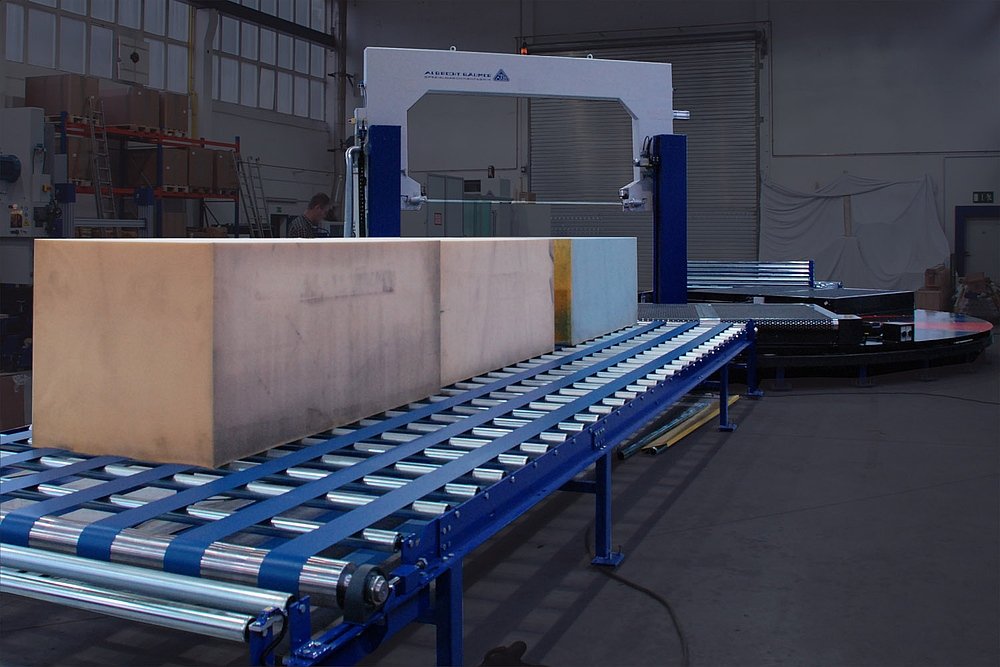

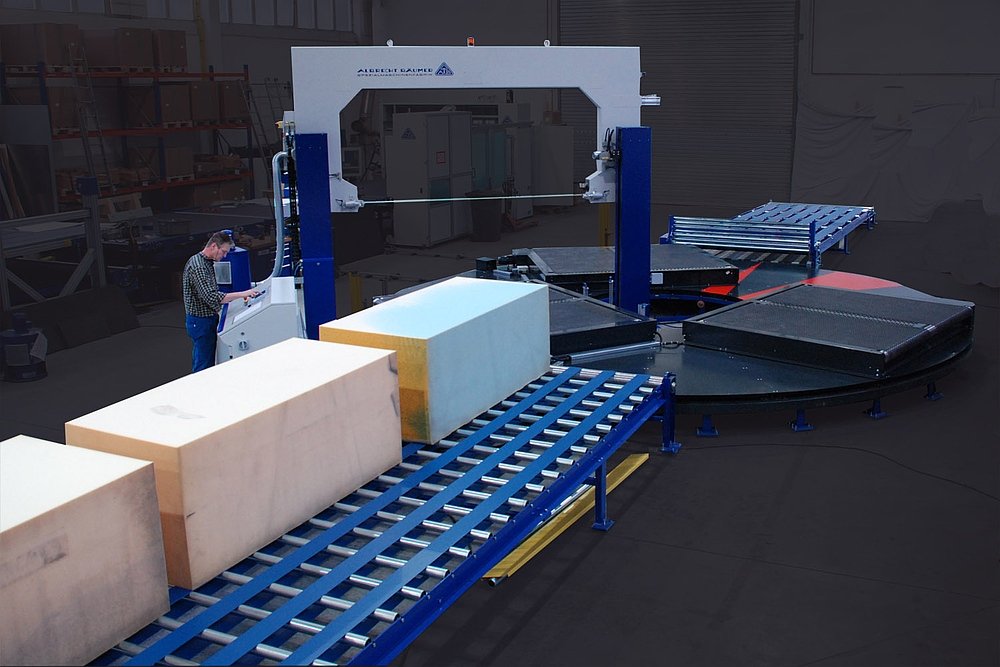

Loading-and-unloading-conveyors-table-with-belts-for-an-all-automatic-working-with-the-machine
Loading-and-unloading-conveyors-table-with-belts-for-an-all-automatic-working-with-the-machine_
Loading-and-unloading-conveyors-table-with-belts-for-an-all-automatic-working-with-the-machine__
Loading-and-unloading-conveyors-table-with-belts-for-an-all-automatic-working-with-the-machine___
Loading-and-unloading-conveyors-table-with-belts-for-an-all-automatic-working-with-the-machine____

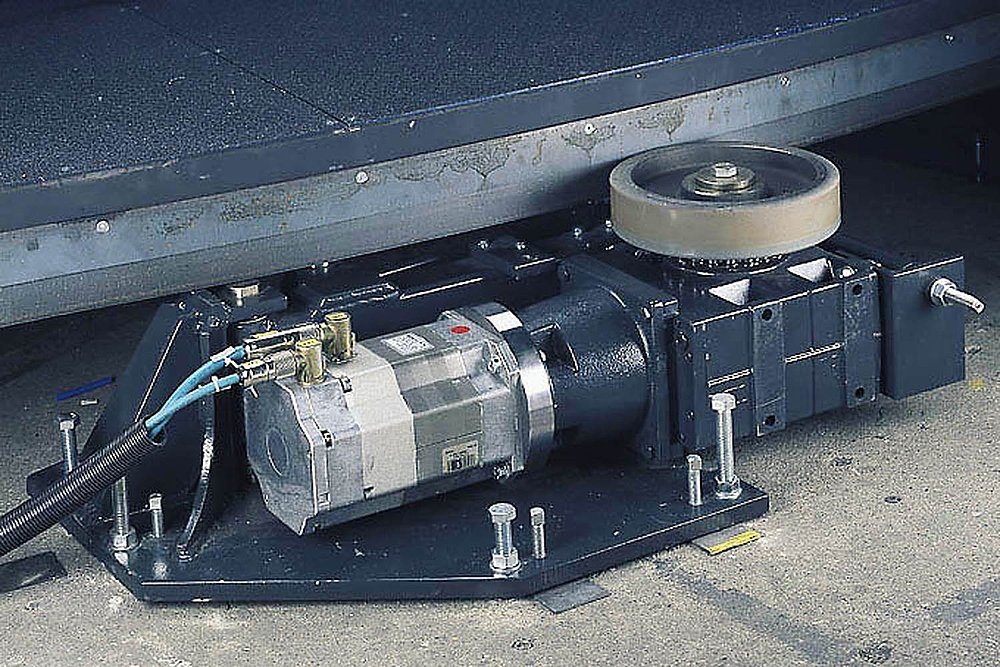

Table-drive



Loading and unloading support

  • Loading and unloading support by means of an air an cushion system
  • Comfortable and very easy unloading even without belt system

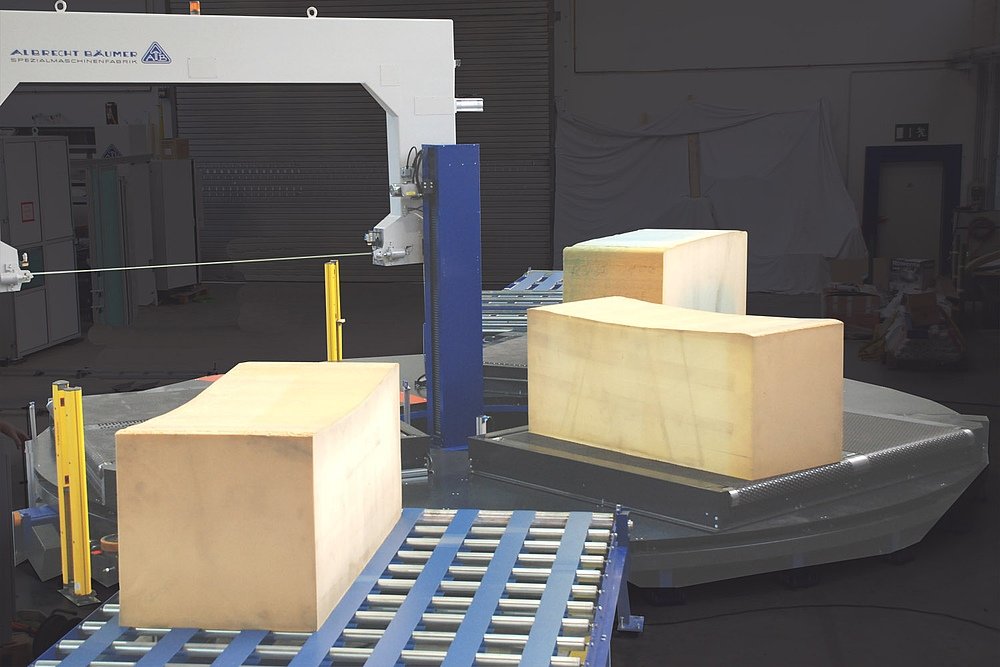

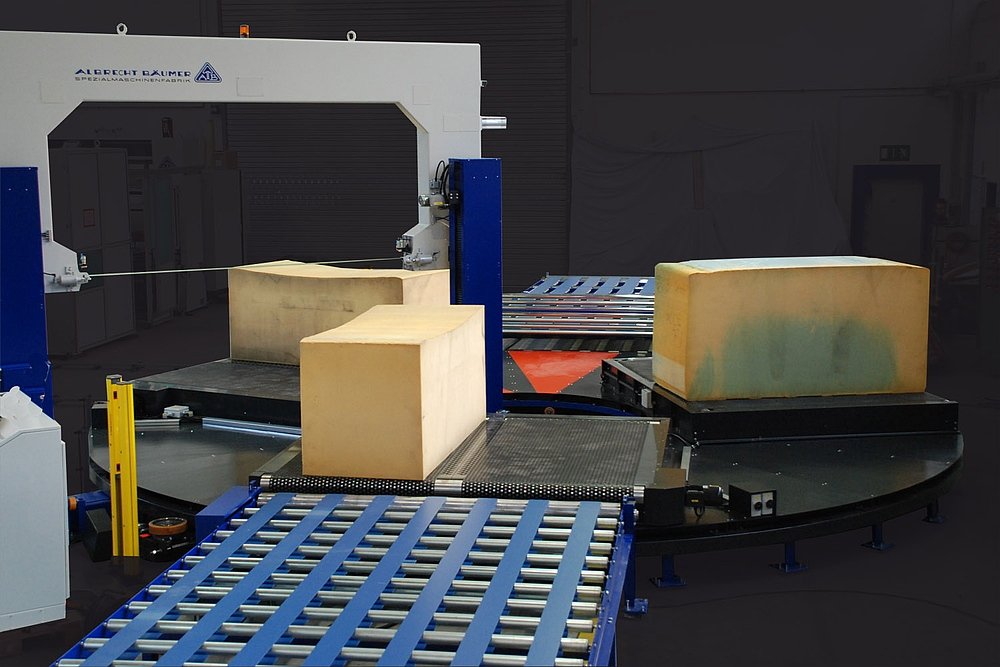

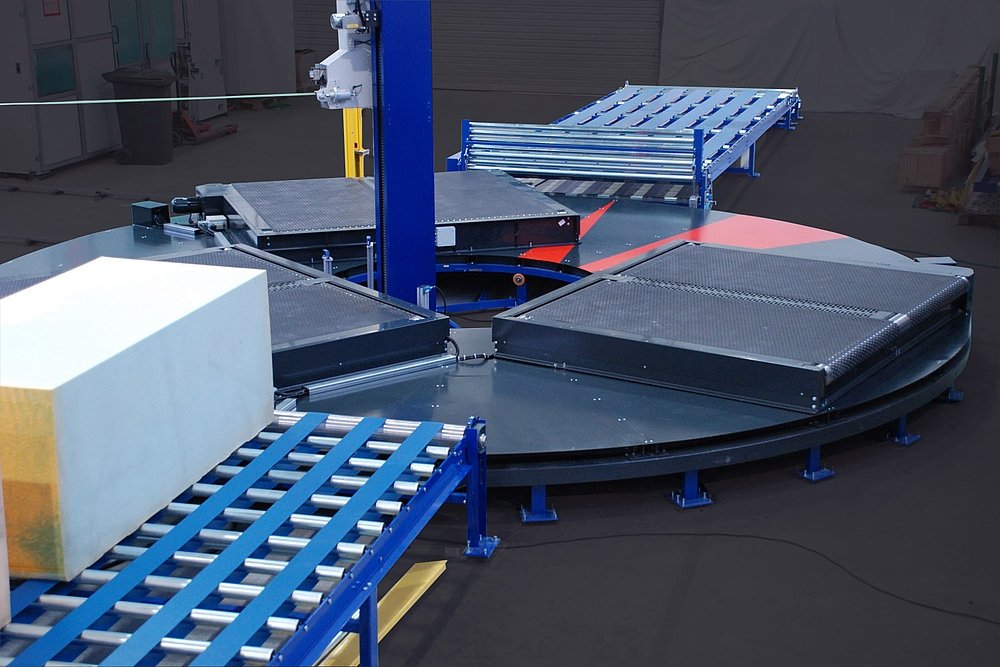

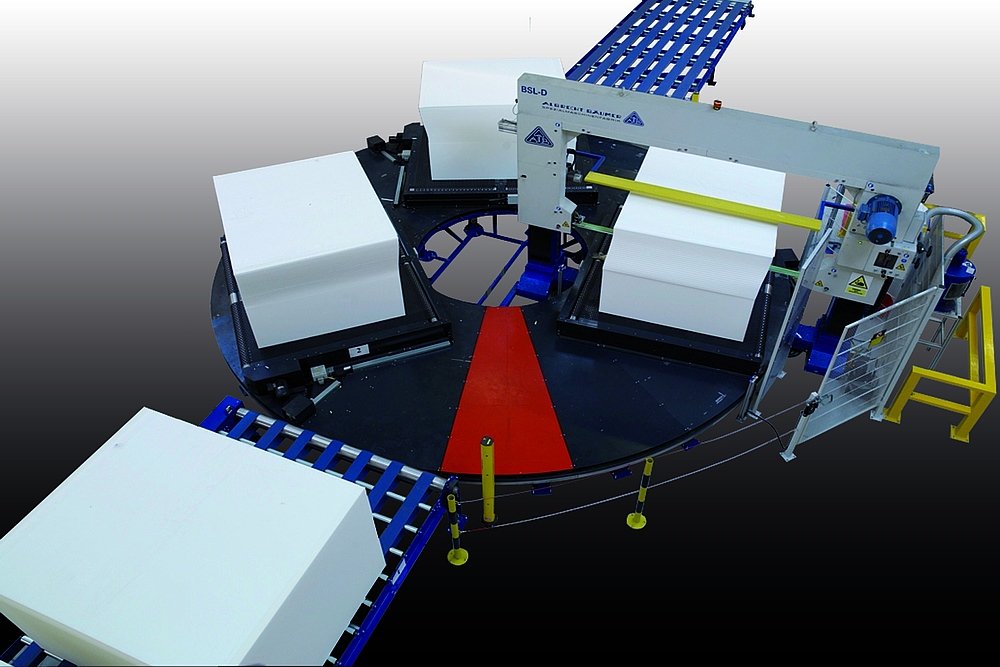

Turntable with belts

  • Equipment of the table with three belt systems
  • Loading and unloading of the machine by preceding transport devices which can be adapted to the conditions on site
  • Particularly used in all-automatic cutting lines
  • Considerable simplification, especially when unloading the machine without preceding transort devices

Air cushion system

  • Air cushion system for the generation of an air cushion beneath the block
  • Easy handling of the block

Spraying unit

  • Wets the knife binding at intervals
  • Minimization of frictional forces between the binding and the material to be cut
  • Reduced sheet offset
