BSM
Horizontal splitting machine with stationary cutting unit and reversing working table

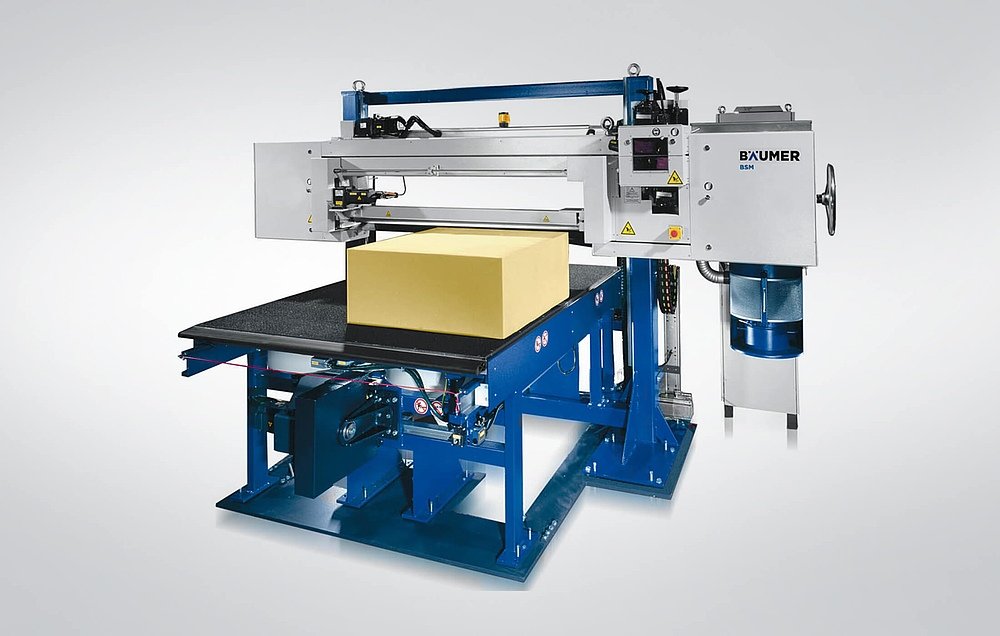

BSM horizontal splitting machine
Maximum cutting thickness 200 mm and minimum cutting thickness 1 mm, remaining sheet of less than 4 mm
- Also suitable for cutting simple mattresses
- Particularly suitable for newcomers due to unmatched price/performance ratio
- Manual angle adjustment of the cutting unit
- Robust steel knife bar with automatic retainer adjustment in case of knife wear

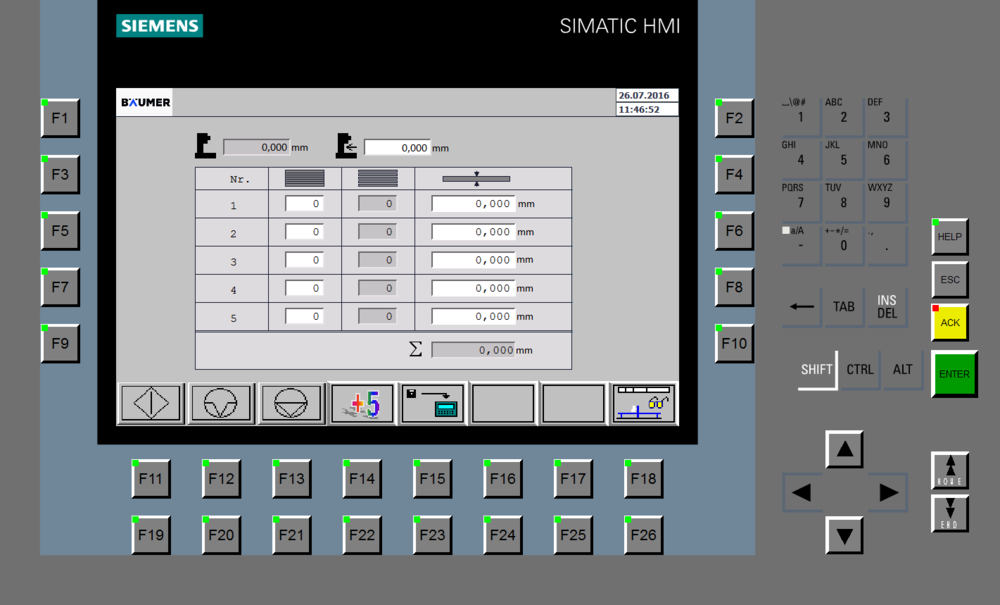

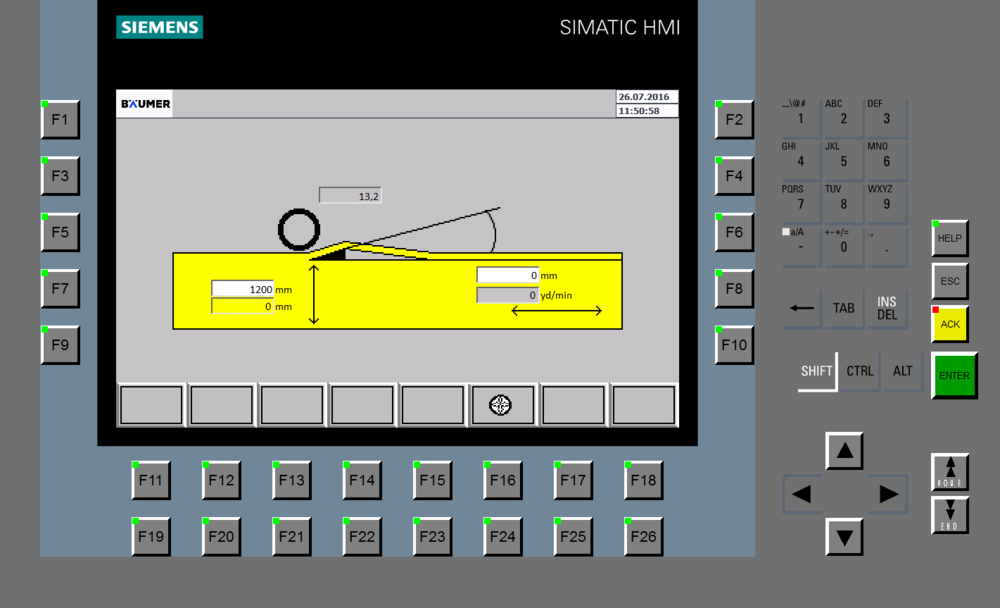

- Operation panel integrated in switch cabinet, swivelling operation panel available (option)
- Special equipment for cutting thin foils
- Integration into an automatic cutting line is possible
Key Facts
Application
Automotive industry, packing industry, technical applicationsSplitting
Material
Suitable for materials with a weight of up to 150 kg/m³ and hardnesses up to 35 shore, e. g.: PUR and PUR rebond foam, rubber rebond foam, PE, EPP and EVA foam, ethafoam, cellular caoutchouc, micro cellular rubber, Basotect®, Baynat®, latex, polyethylene
Cutting Tool
Endless band knife 50 x 0.6 mm in steel knife bar with bindings and central retainer adjustment
Technical Data
| Standard | Options | |
| Block Width | 1 600 mm | 1 200 mm, 2 200 mm |
| Block Height | 1 000 mm | 650 mm, 950 mm, 1 300 mm |
| Block Length | 2 200 mm | 3 300 mm, 4 400 mm, 5 500 mm, 6 600 mm |
Standard
- Automatic retainer adjustment
- Grinding dust extraction unit

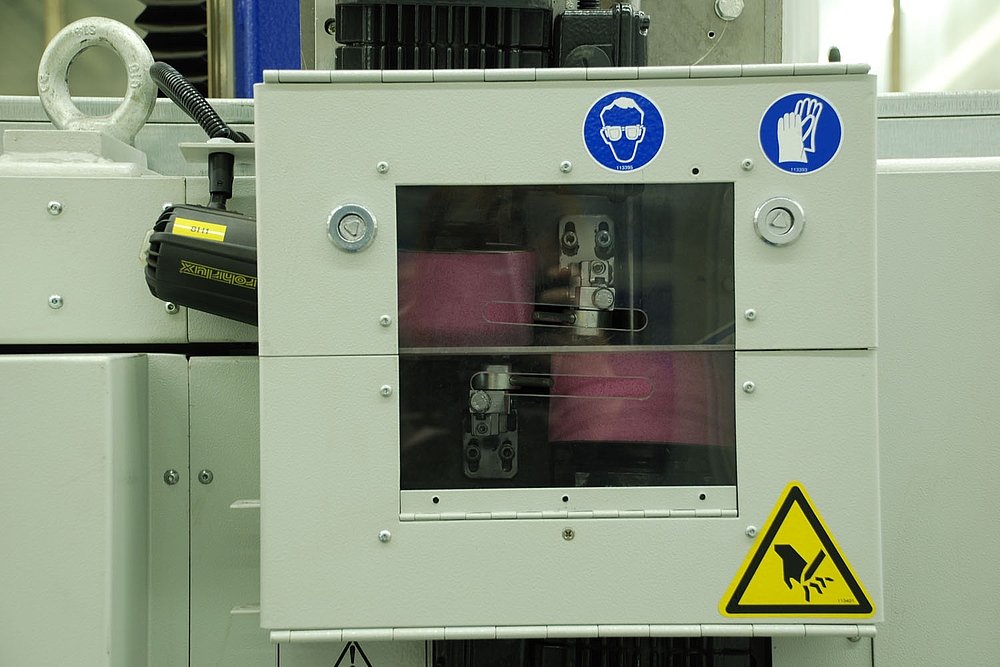

- Grinding unit
- B-Con
- Swivelling operation panel
- Motor driven pressure roller adjustment
- Reversing table without vacuum unit
- Manual cutting angle adjustment
Options
- Belt system on the reversing table
- Circular cross cutter
- Cooling unit
- Driven pressure roller
- Ionisation unit

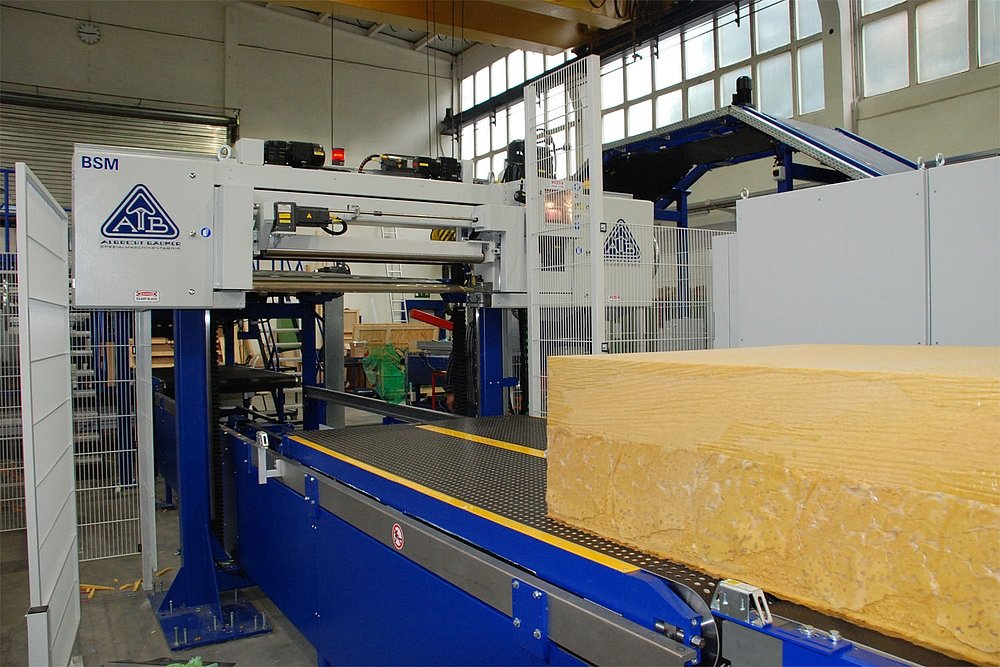

- Loading and unloading conveyors
- Special equipment for cutting thin foils
- Stacking unit
- Vacuum unit
- Motor driven cutting angle adjustment
Foundation Plan
De-stacking unit
- To be postioned downstream of various splitting machines such as BSR or BSM, or following a lamination machine
- Can also be retrofitted to existing machines
Vacuum unit
- High cutting accuracy thanks to a very good fixation of the sheets and blocks on the machine table
- For the cutting of materials which do not stay upon the table on their own due to their low dead weight
