SPLIT-HE 500

All-purpose horizontal splitting machine for splitting flexible and hard to split material

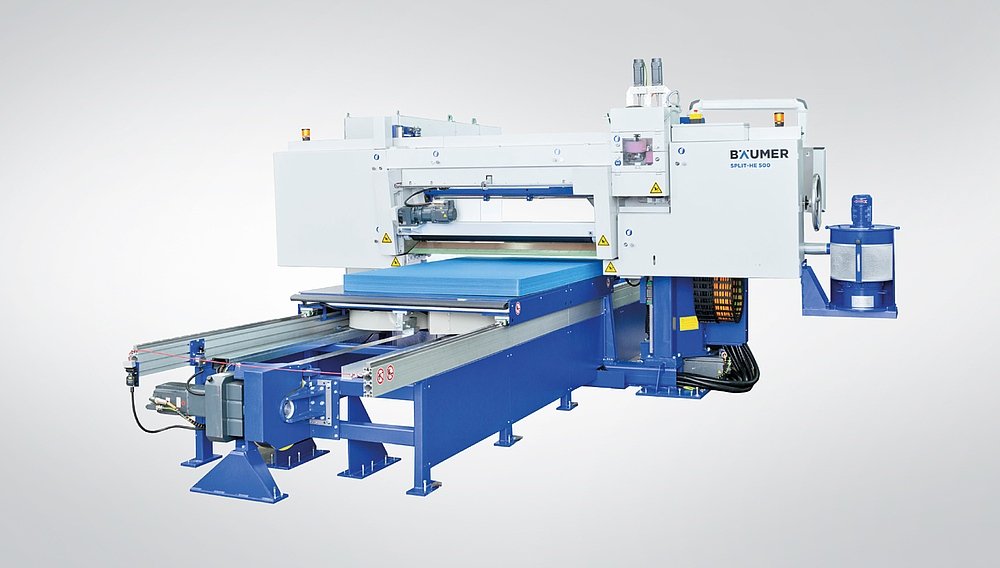

Horizontal splitting machine SPLIT-HE 500

Splits sheets and block material with volume weights up to 400 kg/m³ depending on the material and cutting thickness with maximum precision (splitting PE with volume weights up to 100 kg/m³) and high-density materials with hardnesses above 40 shore A.

The perfect splitting machine for the packaging and automotive industries, as well as other technical applications.

Innovative knife guide system for maximum cutting quality and accuracy: Includes knife bar with a new geometrical shape, which combines the properties of greater stability but also reduced friction with an exact cutting guide and high knife tension

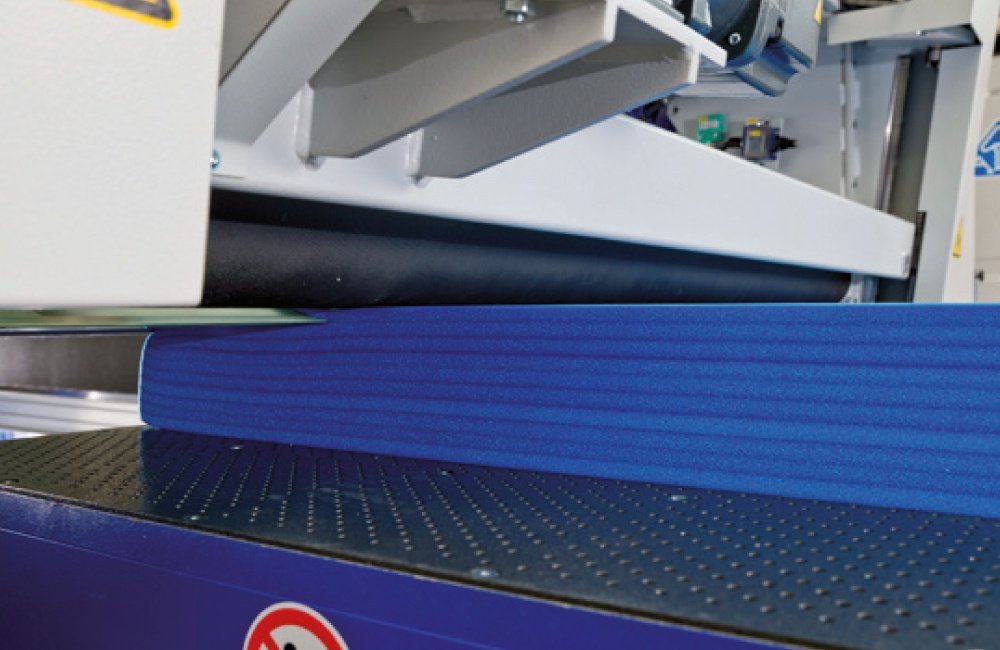

Excellent cutting tolerances thanks to very stable press roller suspension, thus providing greater guide rigidity as well as a significantly more stable, large diameter press roller
Stable material support table with optimized table width

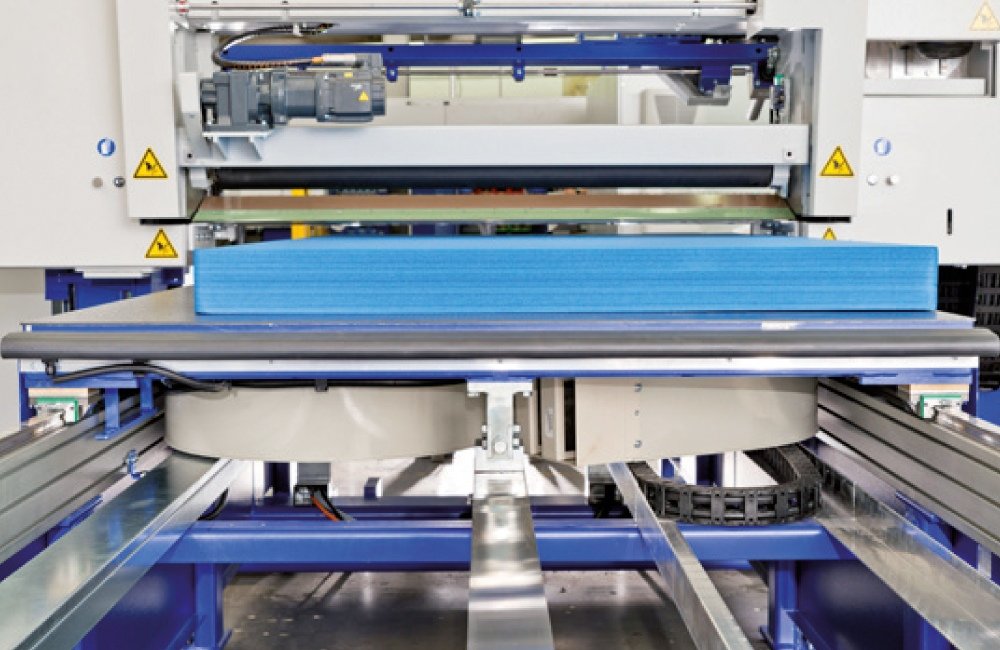

The new vacuum system provides convincing cutting results thanks to 40% more power compared to its predecessor (BSR-1)
Optimized, automatic knife readjustment reduces knife strain by maintaining the position of the knife tip to the pressure roller
Two knife drives for more cutting power
Less waste by reducing the remaining sheet thickness to 2 mm
Short set-up times for fast and efficient production
Efficient grinding in a very stable, powerful grinding unit with grinding disks with a diameter of 150 mm
Quality assurance through automatic grinding monitored by camera

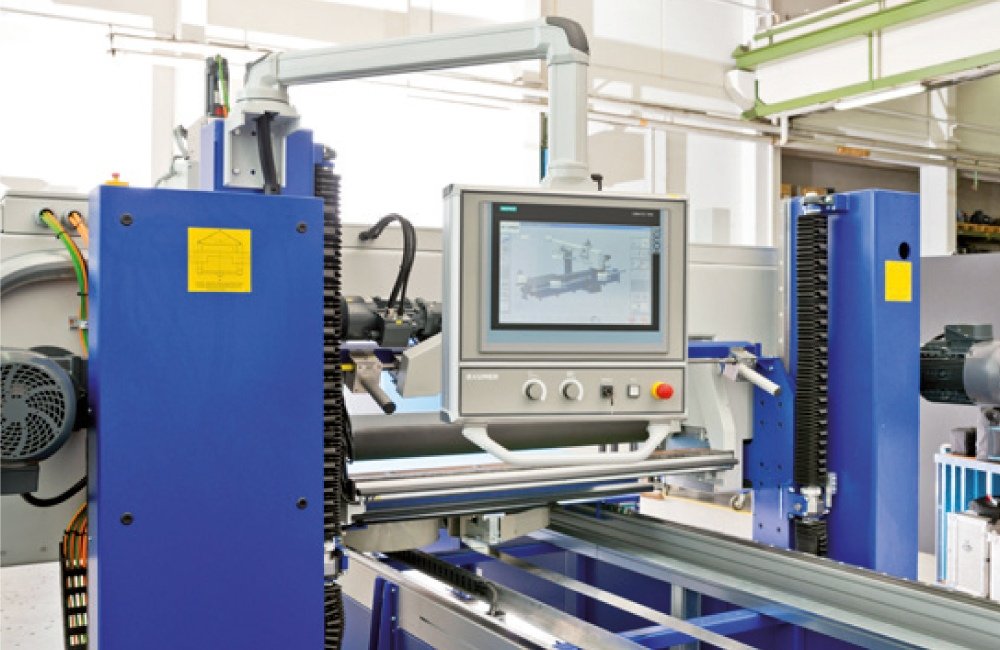

Easy to operate using intuitive touch control system

Key Facts

Application

The perfect splitting machine for the packaging and automotive industries, as well as other technical applications.

Material

Split a wide variety of materials such as PU and PU rebond, polyethylene (PE, XPE), cellular rubber, Basotect®, Baynat®, rubber and rubber rebond, cork, foam rubber, neoprene and comparable materials, reticulated foams, EVA and latex.

Cutting Tool

Endless band knife with a width of 80 mm and a thickness of 1 mm in a knife bar with exchangable upper and lower guide binding

Technical Data

	Standard	Options
Block Width	1 400 mm	1 800 mm, 2 200 mm
Block Height	1 000 mm bei table height 650 mm, 800 mm bei table height 840 mm	1 300 mm bei table height 650 mm, 1 100 mm bei table height 840 mm
Block Length	2 200 mm	2 800 mm, 3 300 mm, 4 400 mm, 5 500 mm, 6 600 mm

Standard

Automatic, finely dosed lubrication of the band knife
Driven loading conveyor for an optimal transport of the material to be cut, cutting speed 3-20 m/min
Motor-driven grinding unit

Options

Attachment table for a better gliding of the material during the rounding process (recommended with profiled and extremely soft material, e. g. latex)
